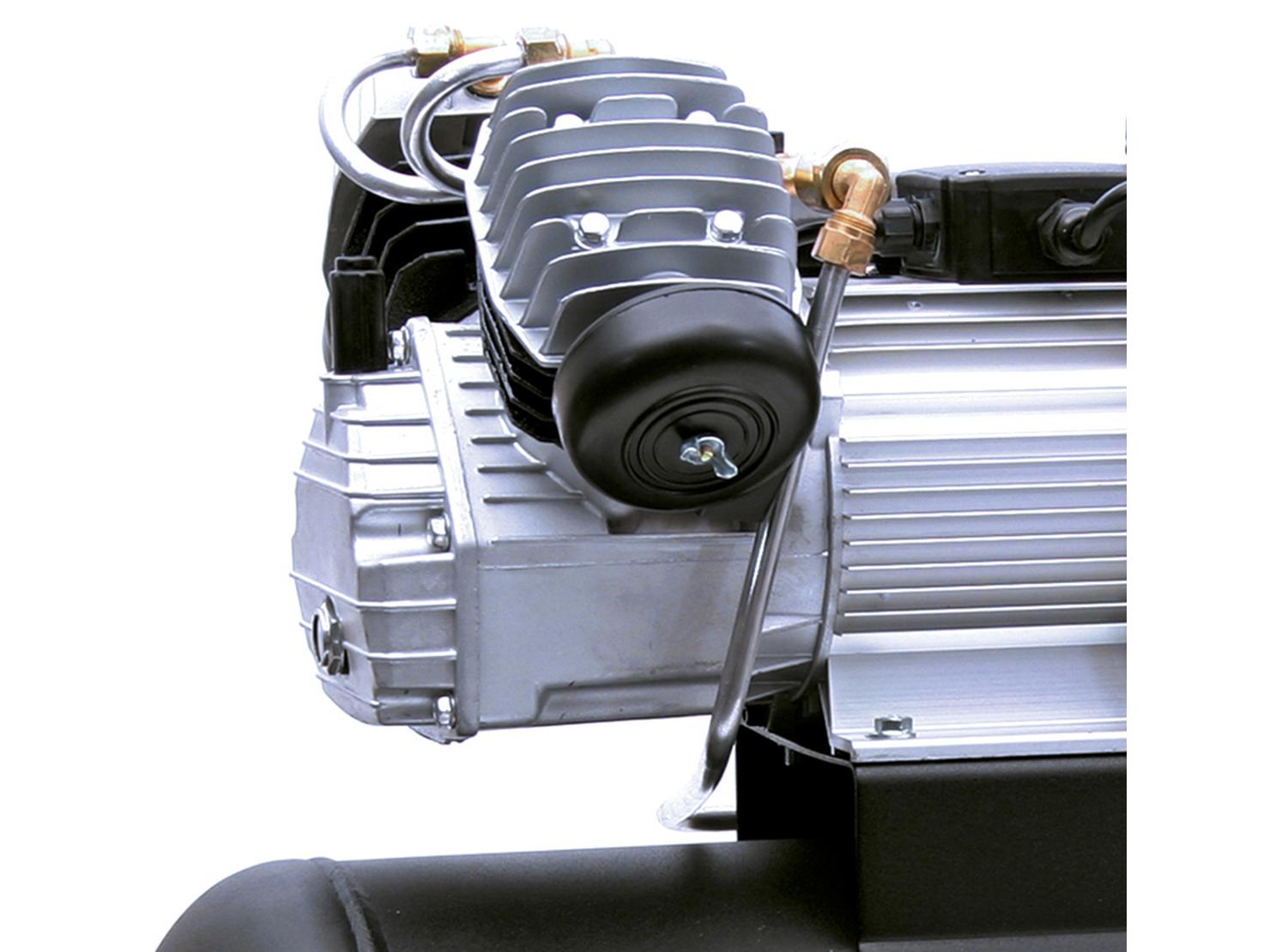

This oil lubricated compressor is operated by a 3.0hp electric induction motor with an aluminum crankcase and a cast-iron pump unit, the compressor offers powerful and robust performance with an efficient cooling system. With a piston displacement of 14CFM, 9.5CFM free air delivery and a maximum pressure of 9bar Suitable for both the professional and occasional user, the machine comes supplied with two integral wheels that afford the operator with easier maneuverability. 50 litre tank.
Suitable for use with a nailer, stapler and many other tools, this Italian designed machine features simple to use controls whilst offering a reliable air supply for a multitude of optional tools.
- This single stage belt drive compressor offers a user friendly, reliable and sturdy design
- The belt driven unit is equipped with the best belt guard available, providing an optimal air flow over the pump
- The pump runs at a lower speed together with an aftercooler to reduce operating temperatures even more than ever before
- Reduced wear thanks to great cooling
- Largest compressor that can be run on 240v; required power supply 13amp, 2.5mm cable, no extensions
- Sturdy construction with anti-vibration rubber feet reduces noise, vibration and helps prevent damage to floors.
At a glance:
- Direct drive, 50L mobile compressor
- 3hp (2.2kW) Motor
- Hard wearing cast iron barrel
- Runs on 13amp (230v) supply
- Class leading air displacement 14.5 CFM (130 psi)
- Oil lubricated design
- Ideal For Light Professional / DIY Users
Technical information:
ADDITIONAL FEATURES | Oil Lubricated |
---|---|
AIR RECIEVER SIZE | 50 Litres |
CE APPROVED | Yes |
DIMENSIONS PACKAGED | 670 x 830 x 350mm (HxWxL) |
FREE AIR DELIVERY CFM | 9.5CFM (269 litres/min) |
GUARANTEE DOMESTIC | 12 Months |
MADE IN | Italian Design |
MOTOR POWER | 3.0hp (2.2kW) |
MOTOR TYPE | Heavy Duty |
NOISE LEVEL IN DB(A) / LWA | 97dB(A) |
PRODUCT ID NO | 06242 |
PSI PRESSURE | 130psi (9.0 Bar) |
VOLTAGE 50HZ | 230v (13amp) |
WEIGHT | 45kg |
WHEELS | 2 & 1 Castor |
PISTON DISPLACEMENT | 14.0CFM (397 litres/min) |
Voltage | 230v |
