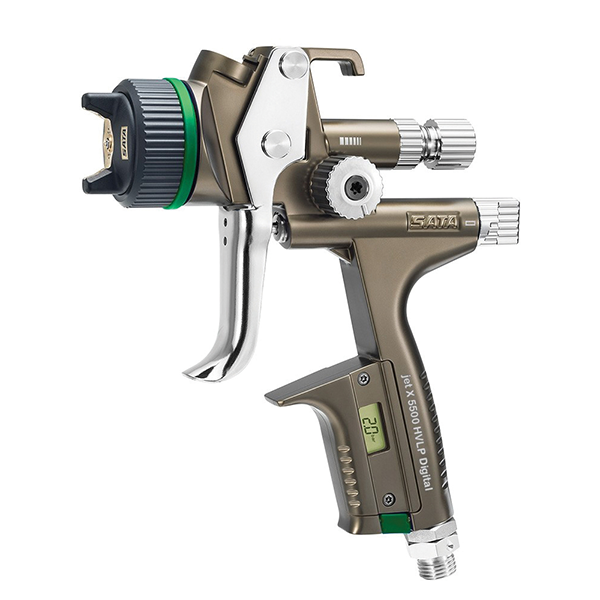

SATAjet X 5500 Spraygun Digital

£839.00 Excl. VAT

  • Revolutionary: the atomization of the X-nozzles sets completely new standards
  • Silent: whisper nozzle™ through optimized flow geometry, reduced volume in the relevant frequency ranges
  • Individual: suitable for every application requirement, such as properties of the paint system, climatic conditions or painting habits (working speed/control)
  • Efficient: with the same application method, considerable material savings are possible
  • Precise: optimized material distribution for both jet shapes for uniform and optimally matched atomization in a new nozzle system
  • Low maintenance: without separate air distribution ring for easier and faster cleaning
  • Logical: constant jet dimensions for all nozzle sizes (within the respective technology) with uniformly increasing material throughput
Options Unit Price Excl. VATIncl. VAT Quantity
Non-digital
1061879
£839.00 £1,006.80
Available on backorder
Digital
1061647
£839.00 £1,006.80
Available on backorder

The new SATAjet X 5500 spraygun digital with the revolutionary SATA X nozzle system will change the paint industry.

SATAjet X 5500 spraygun digital, a design revolution

Revolutionary, because: For the first time with SATA, a spray gun manufacturer is offering a nozzle system that allows two jet shapes per nozzle size. Stretched and oval. In all nozzle sizes. The widest nozzle spectrum ever. For an incredible number of possibilities. For a wide variety of refinishers and for a wide variety of coating systems and climatic conditions.

Two ways to achieve a perfect result: HVLP and RP

The “Super Saver” SATAjet X 5500 HVLP achieves particularly
high transfer rates, due to its low pressure technology.

The “Super Speed” SATAjet X 5500 RP with its optimised high
pressure technology for maximum application speed and minimum overspray.

Both versions  of the SATAjet X 5500 spraygun digital are extremely versatile in application, meeting the highest expectations concerning excellent finishes, while far exceeding 65% transfer efficiency rates in accordance with VOC legislation.

N.B. Non Digital version also available.

At a glance:

  • Revolutionary: the atomization of the X-nozzles sets completely new standards
  • Silent: whisper nozzle™ through optimized flow geometry, reduced volume in the relevant frequency ranges
  • Individual: suitable for every application requirement, such as properties of the paint system, climatic conditions or painting habits (working speed/control)
  • Efficient: with the same application method, considerable material savings are possible
  • Precise: optimized material distribution for both jet shapes for uniform and optimally matched atomization in a new nozzle system
  • Low maintenance: without separate air distribution ring for easier and faster cleaning
  • Logical: constant jet dimensions for all nozzle sizes (within the respective technology) with uniformly increasing material throughput

Technical Information – HVLP
Air consumption 430,0 Nl/min
Max. inlet air pressure 10,0 bar
Packaging unit 1,0 Pieces
Net weight 0,113 – 1,186 kg
Recommended dynamic inlet pressure 2,0 bar
Recommended spraying distance 10 – 15 cm
Cup connection type QCC
Nozzle Size 1,1 I / 1,2 I / 1,3 I / 1,4 I / 1,5 I / 1,1 O / 1,2 O / 1,3 O / 1,4 O / 1,5 O
Nozzle Technology HVLP
Color Code System (CCS) ✓
QCC ✓
Quick change ✓
SATA adam compatibility ✓
Integrated pressure gauge ✓
* All information without guarantee – errors and changes reserved.
** All data refer to the entire product range and not to individual variants.
Technical Information – RP
Air consumption 290,0 Nl/min
Max. inlet air pressure 10,0 bar
Packaging unit 1,0 Pieces
Net weight 0,113 – 1,186 kg
Recommended dynamic inlet pressure 2,0 bar
Recommended spraying distance 17 – 21 cm
Cup connection type QCC
Nozzle Size 1,1 I / 1,2 I / 1,3 I / 1,4 I / 1,1 O / 1,2 O / 1,3 O / 1,4 O
Nozzle Technology RP
Color Code System (CCS) ✓
QCC ✓
Quick change ✓
SATA adam compatibility ✓
Integrated pressure gauge ✓
* All information without guarantee – errors and changes reserved.
** All data refer to the entire product range and not to individual variants.
