Mixing Nozzles
From £2.06£2.47
SKU: MCQ1024TMaterials: Polypropylene
Colour: Natural Body/ Green Elements
Mix Ratios: Use with 1:1/ 2:1 Only
Length: 172.0mm
Inner Diameter: 10.7 mm
Outer Diameter: 12.5 mm
Number of Elements: 24
Retained Material Volume: 14.04 ml
Connection Type: Bell mouth Push-On
Maximum Pressure: 100 PSI (6.89 Bar)
Flow Pattern: Straight
Description: Static Mixer Nozzle
Features: Silicone-Free, Industrial Grade
Commodity Code: 39235090
| Quantity | Price |
|---|---|
| 1 - 4 | £2.06£2.47 |
| 5 - 9 | £1.85£2.22 |
| 10+ | £1.66£1.99 |
£2.06£2.47
Excl. VAT
Updating...
- Key Information

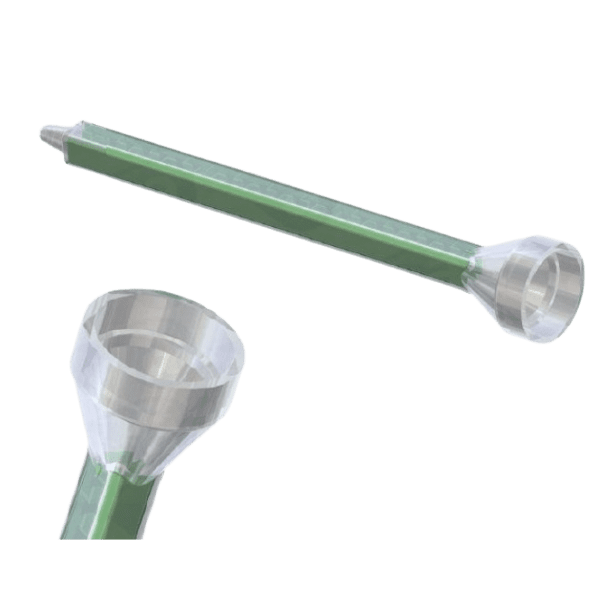

Bell mouth inlet, helical static mixer nozzle for 200ml, 400ml and 600ml C-System dual component cartridges. Stepped end outlet providing controlled flow or can be cut back to increase flow rates. These mixer nozzles are suitable for 1:1 and 2:1 ratio two-component materials and C-System bell mouth type cartridges.
They have green elements and are constructed of high grade polypropylene. All items are industrial grade safe and silicone free.
Dispensing nozzles are available in many different styles and with stepped,open or luer ends.
